Standard Fork Frame
➜ Have questions or want to learn more about this equipment? Our experts are here to assist you with detailed information, pricing, and availability. Reach out by phone, send us an email, or visit us in person at any of our convenient locations.
- Performance Guaranteed
- Made in USA
- Available at Denton, NC
- Available at Myrtle Beach, SC
Standard Fork Frame — Specifications

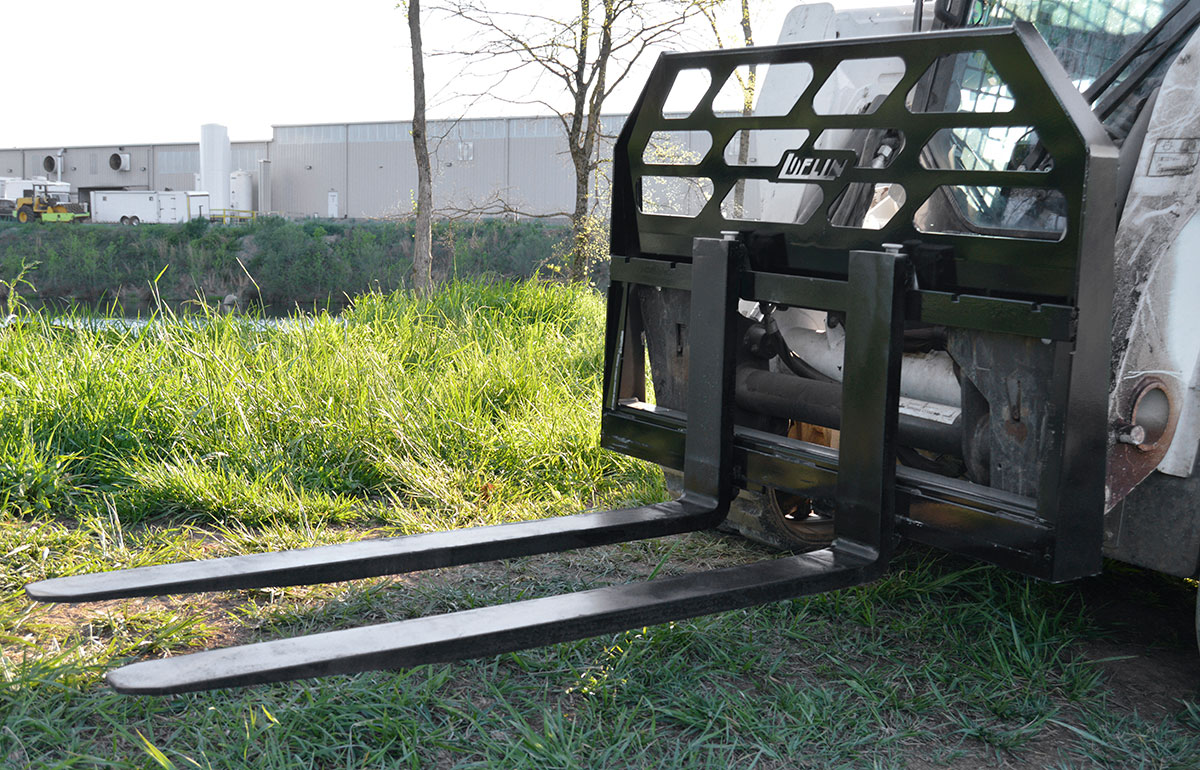

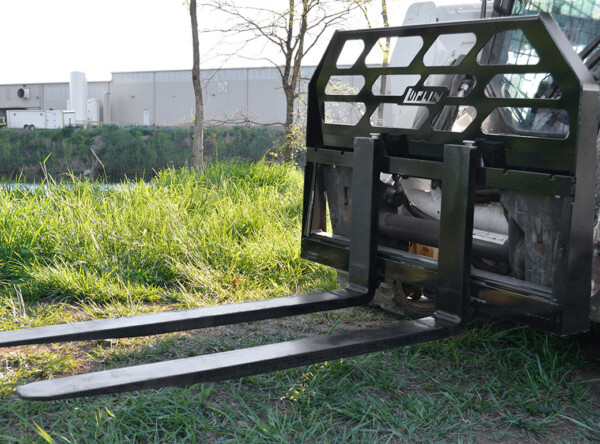

Overview. Heavy duty for others, but standard for us. This standard fork frame is built for a full range of daily jobsite use. Uses Class II pallet forks with adjustable tine spacing for quick load handling. Reinforced carriage and backrest provide clear sight lines and stable load support.
Applications
- Palletized material handling, lumber yards, nurseries, construction supply
- Loading/unloading trucks and trailers
- Jobsite staging, warehouse and yard operations
Core Specs
| Spec | Value |
|---|---|
| Overall Height | 32 1/4″ |
| Overall Width | 45 1/2″ |
| Fork Class | Class II |
| Fork Lengths | 36″, 42″ , 48″, 60″ 72″(solid forged) |
| Rated Capacity @ 24″ LC | 4,500–5,500lbs(by fork length) |
| Tine Section | 1 3/8″ Thick x 4″ Wide (Standard Duty), 1 3/4″ Thick x 4″ Wide (HD) |
| Carriage Width | 48″ (typical) |
| Backrest Height | High-visibility backrest |
| Tine Adjustment | Manual slide with lock-in positions |
| Mounts | Universal skid steer quick-attach |
| Finish | Powder-coated |
| Weight | — (varies by fork length) |
Notable Features
- Solid forged tines with positive lock spacing
- Reinforced carriage and backrest for durability
- Open-sight carriage improves fork tip visibility
- Serviceable, field-proven design for long life
STANDARD FORK FRAMES
| Part # | Description | Weight |
|---|---|---|
| 0040101045 | 45″ STANDARD FORK FRAME 4500LB CAP. | 127lbs |
| 0040101050 | 50″ STANDARD FORK FRAME 4500LB CAP. | 208lbs |
| 7000031 | CLASS 2 PIN KIT (LATCH FOR FORKS) |
Overview
Our forks and spears are designed for precise material handling across construction, agricultural, and industrial worksites. Ideal for transporting logs, pallets, and bulk materials, these attachments provide a combination of strength, balance, and operator control. Constructed with reinforced steel, they can endure heavy-duty use without compromising safety or performance.
Key Features & Benefits
- High-strength steel tines for heavy material transport
- Adjustable spacing for versatile handling
- Universal quick-attach compatibility
- Optimized for skid steers, compact track loaders, and other industrial machines
- Corrosion-resistant finish for long-term durability
Applications & Industries
Perfect for construction sites, farms, warehouses, and logging operations. Operators can handle pallets, logs, and bulk materials with speed and precision, reducing downtime and labor costs.
Compatibility & Fit
Compatible with Bobcat, John Deere, CAT, Kubota, and other major skid steer systems. Quick-attach mounts allow for easy installation and secure operation.
Durability & Maintenance
Reinforced frames and tines withstand heavy loads. Periodic inspection and lubrication of pivot points ensure continued performance over years of heavy use.
Why Choose These Forks & Spears
Designed for professional operators who need reliability and efficiency. Trusted for material handling across diverse industries, these forks and spears provide superior strength, versatility, and operator confidence.
FAQ
Q: Can I use these forks for pallet handling?
A: Yes, they are designed for both pallet and log material handling with high load capacity.
Q: Will it fit my skid steer?
A: Compatible with universal quick-attach systems on Bobcat, CAT, John Deere, and Kubota machines.
Q: How do I maintain them?
A: Inspect tines, pivot points, and attachments regularly; lubricate and replace worn parts as needed.
Keywords & Related Terms
skid steer forks, pallet forks, material handling spear, log transport attachment, heavy-duty forks, universal quick-attach forks, construction and farm attachment
